Product Description

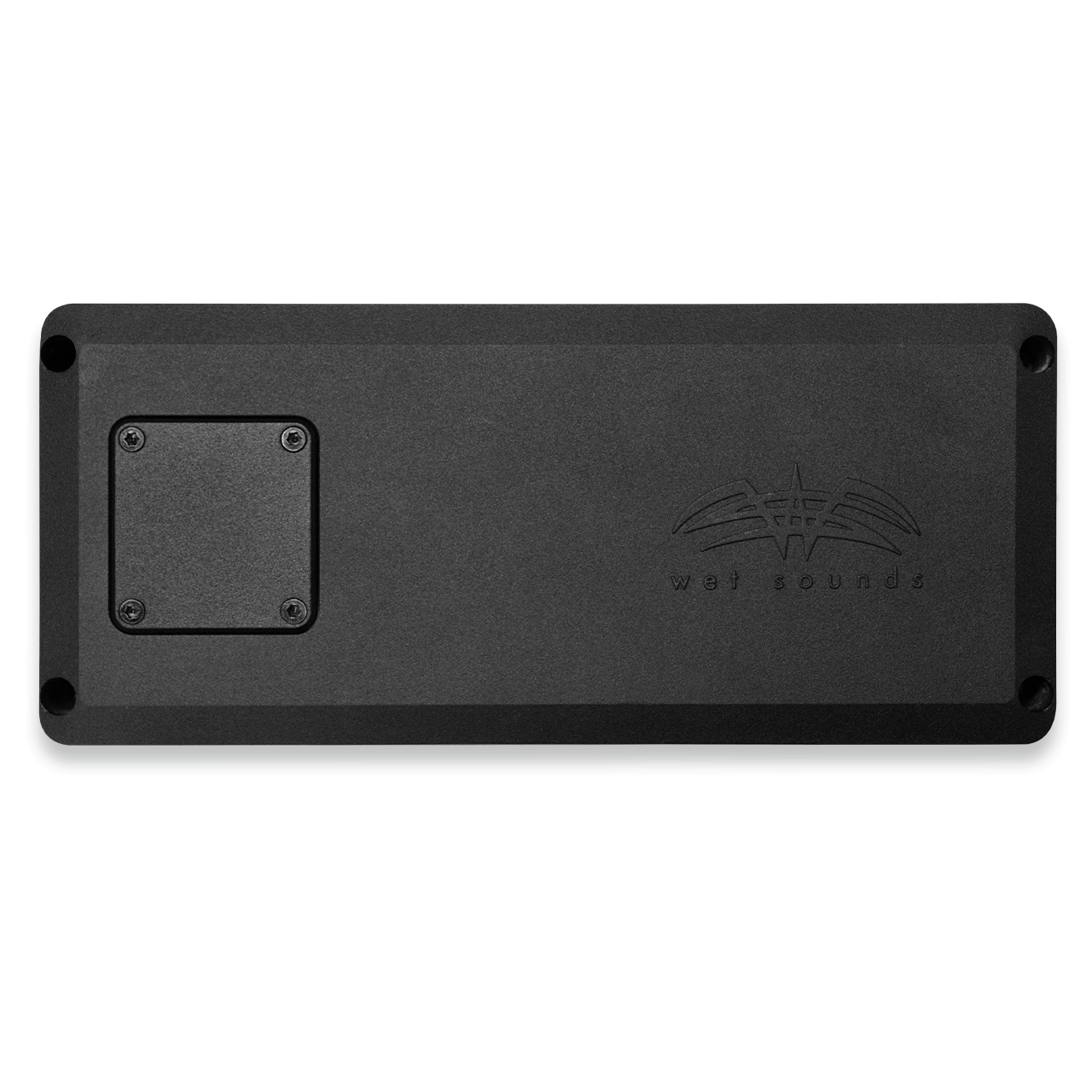

The STX Micro-4 Compact chassis Class D Amplifiers by Wet Sounds, are the latest innovative products designed for the Power Sports enthusiast. The small yet powerful amplifiers are designed with a completely sealed die cast aluminum chassis for maximum protection against water and dirt intrusion. The STX Micro-4 is outfitted with 3.5mm signal input connections to work seamlessly with our Bluetooth controllers (BTVCC) or direct connection to most smart phone’s headphone output.

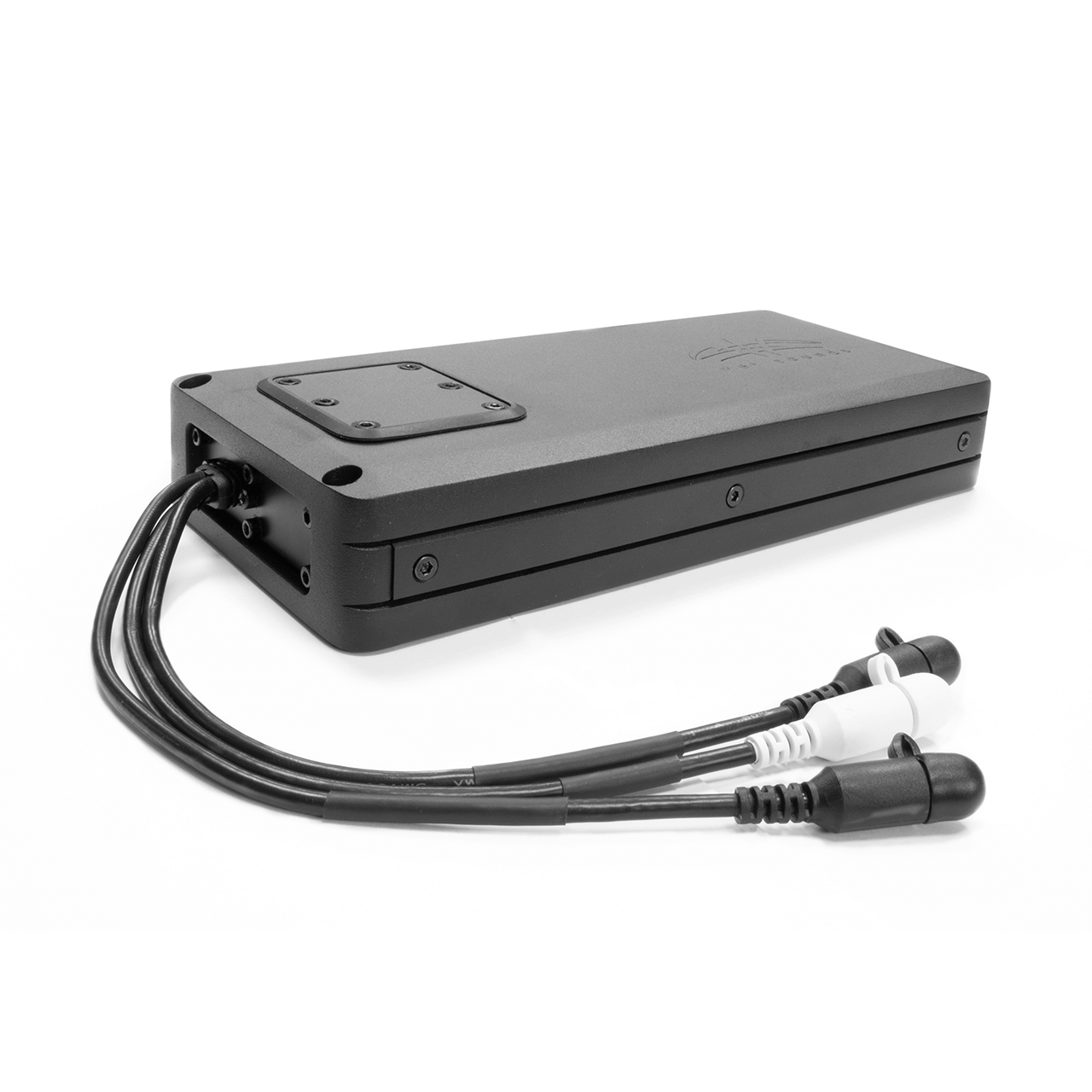

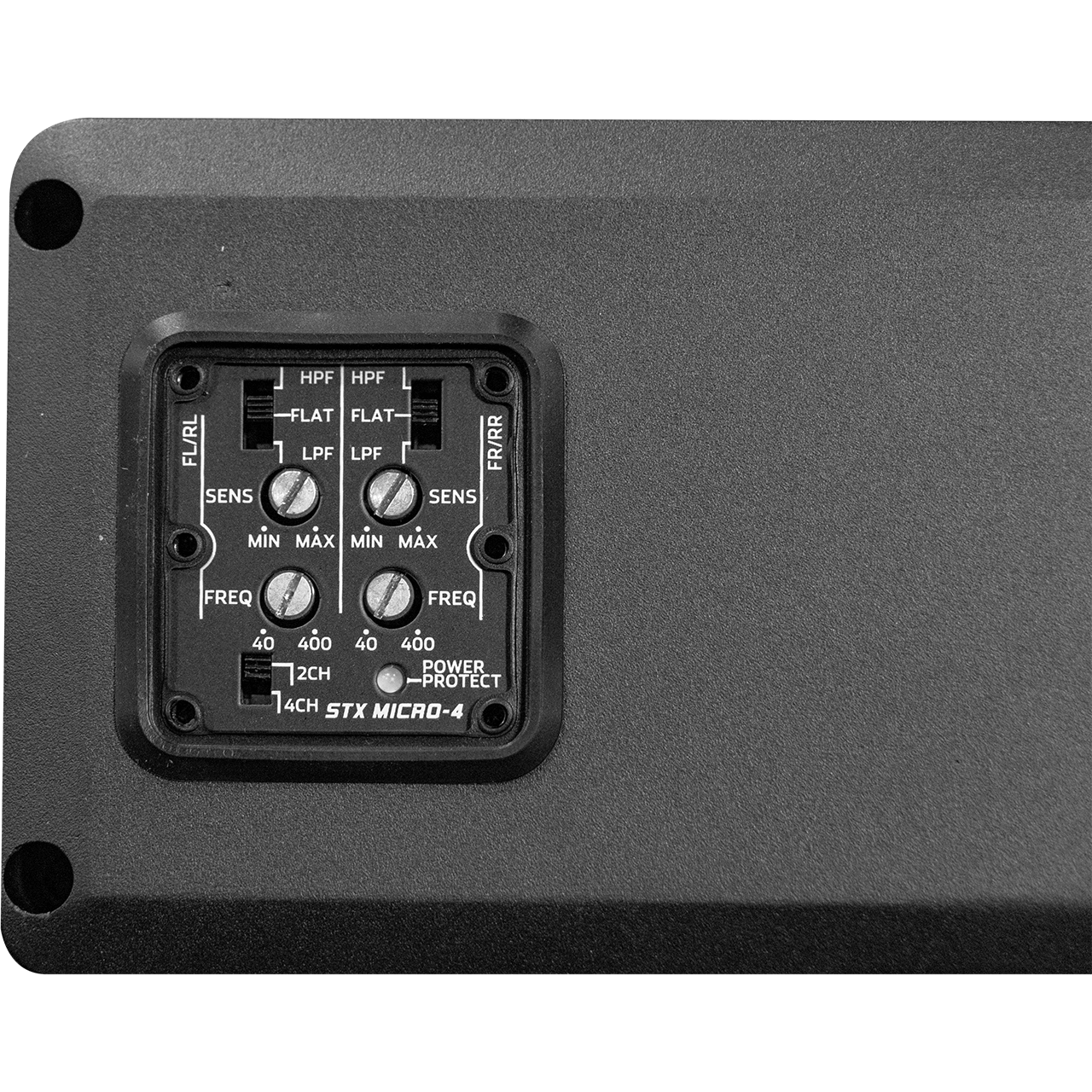

The STX Micro-4 has a rated output power capability of 80wx4 into 4 Ohms & 130 Wx4 into 2 Ohms. Bridged power on the STX Micro-4 is 280Wx2 into 4 Ohms, with fully variable high pass/low pass crossovers. A set of pass-through outputs on the STX Micro-4 allows connection to a second amplifier, and the multichannel switching mode enables all four channels of output with only 2 channels of input, eliminating the need for Y adaptors.
Created for the limited space in many ATV/UTV vehicles, with a chassis size of 9.25 inches long, 4 inches wide, and a height of 1.5 inches, the STX Micro-4 packs amazing power into a minimum footprint!
Specs:
- Power Output @ 4 OHMS:
- 80W x 4
- Power Output @ 4 OHMS:
- 280W x 2
- Power Output @ 2 OHMS:
- 130W x 4
- S/N Ratio @ 1 Watt:
- > 95dB
- Frequency Response:
- 10 Hz – 40 kHz
- Total Harmonic Distortion:
- 0.05%
- Input Sensitivity Range:
- 150mV – 7V
- Dimensions:
- 9.25” L x 4” W x 1.5” H
- Channels:
- 4
- Series:
- Stealth STX
